Built in Canada by Laurin since 1965
Heavy-duty steel storage cabinets
3,500 lb of welded 12-gauge steel, with a three-point rod latch and a dual-locking system. Shipped across the United States.
Drag to turn the cabinet
Traffic yellow RAL 1023
- wide
- 76 in
- deep
- 77 in
- high
- 91 in
- of welded steel
- 3,500 lb
- walls and floor
- 12 gauge
- of locked storage
- 9 cu yd
Shown with two of the optional shelves
Nine cubic yards of locked, dry storage
Sturdy and discreet, the cabinet keeps what matters safe from theft and from the weather, at a school, a service station or a private home.
- Valuables and documentsTwo steel doors and a dual-locking system stand between your valuables, critical documents and everyone else.
- School and sports gearHoops, balls, shovels and yard games fit with room to spare. Ventilation hatches keep the air moving.
- Maintenance equipmentAdd the access ramp and a snow blower or other wheeled equipment rolls straight in.

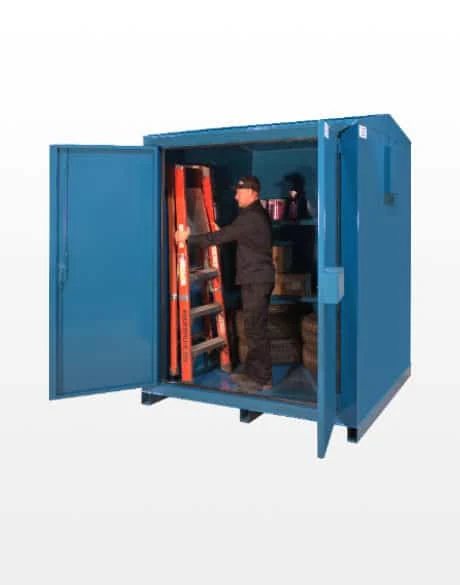

- Supplies on shelvesOptional adjustable shelves from 16 to 36 in carry up to 1,950 lb each.
- Schools
- Service stations
- Homes
- Manufacturing plants
- Distribution centers
- Military and government
How it is built
Every cabinet is welded from 12-gauge steel by the Laurin team. The numbers on the drawings match the list beside them.
12-gauge steel, fully welded
Walls and floor are 12-gauge steel in a heavy-duty welded construction. The cabinet weighs 3,500 lb.
Two doors, three hinges each
Both doors open on a clear passage 58.5 in wide and 72 in high.
Three-point rod latch
A lockable handle drives the rods, and the dual-locking system keeps both doors shut.
Ventilation with a steel cover
Ventilation screens keep contents fresh and prevent mold and dampness. A steel cover protects each screen.
6 in welded legs
Welded legs lift the floor off the ground.
Painted in your color
Polyurethane paint in eleven standard colors, or matched to your brand or team colors.
Eleven standard colors
Pick one and the cabinet, the drawings and this whole section repaint to match. Custom colors that match your brand or your team are available for a nominal fee.
Photos show the color on Laurin's wider 108 in cabinet. Colors on a screen are approximate.

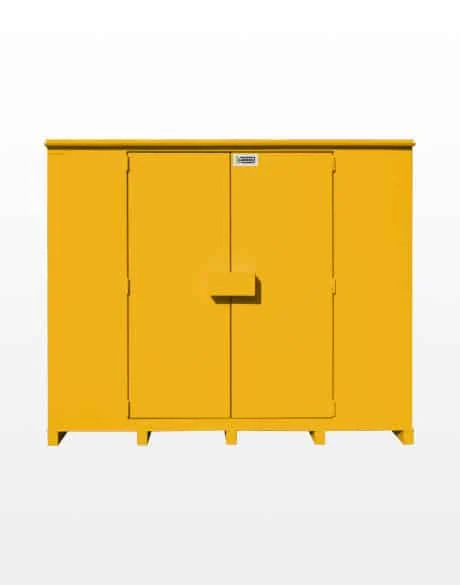

Selected colorTraffic yellow, RAL 1023
Request a quote in this colorSpecifications
| Width | 76 in |
|---|---|
| Depth | 77 in |
| Overall height | 91 in |
| Door opening | 58.5 in wide, 72 in high |
| Weight | 3,500 lb |
| Legs | 6 in, welded |
| Walls and floor | 12-gauge steel |
| Capacity | 9 cubic yards |
| Storage | Optional adjustable shelves |
| Shelf capacity | 1,950 lb per shelf |
| Latch | Three-point rod latch |
| Door lock | Dual-locking system |
| Ventilation | Ventilation screen with protective steel cover |
| Construction | Heavy-duty welded steel |
| Finish | Polyurethane paint, eleven standard colors |

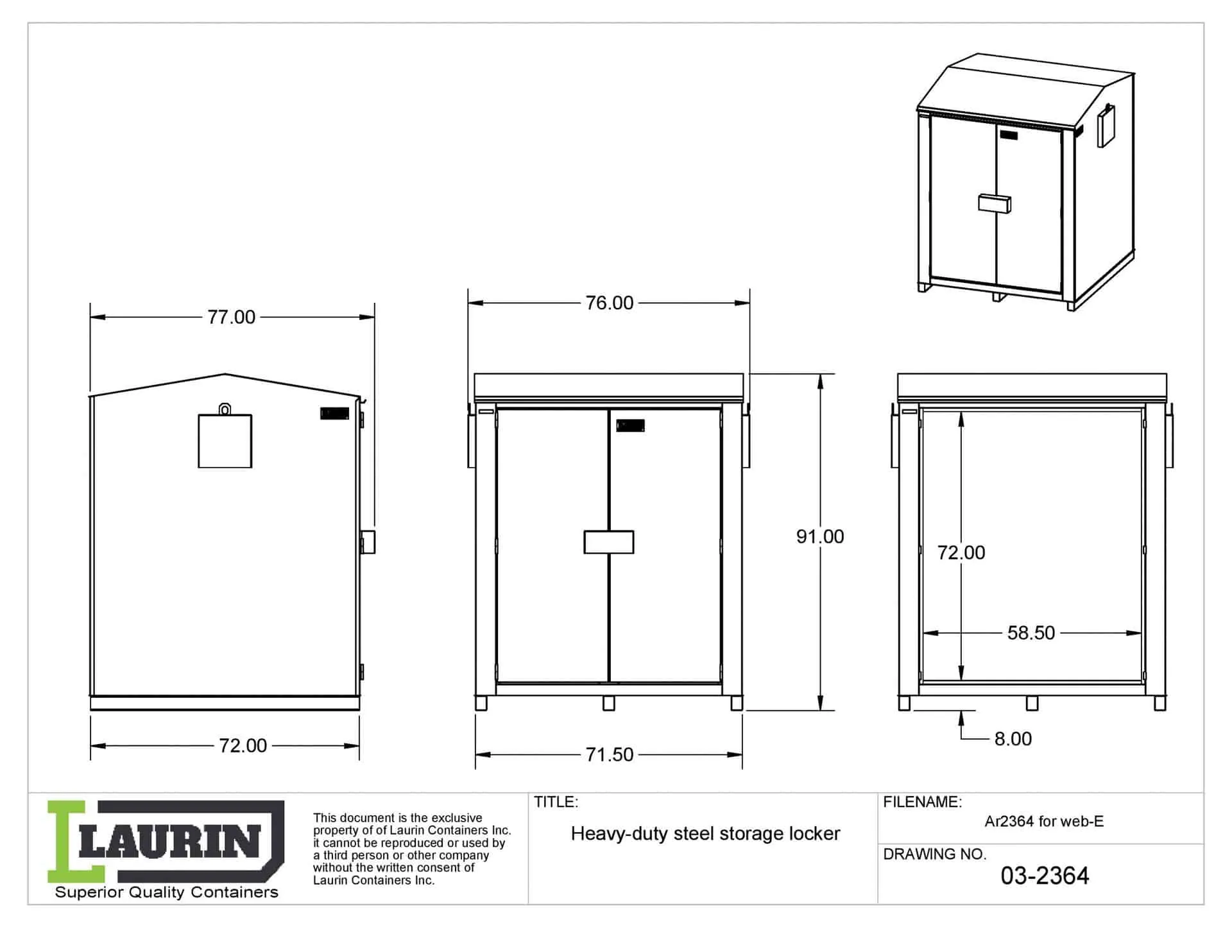

Laurin drawing 03-2364. Dimensions in inches. Select the drawing to open it full size.
Options
- Adjustable shelves: 16, 24, 30 or 36 in
- Separator wall
- Access ramp
- Clothes hook
- Anchoring ring to fix the cabinet to the ground

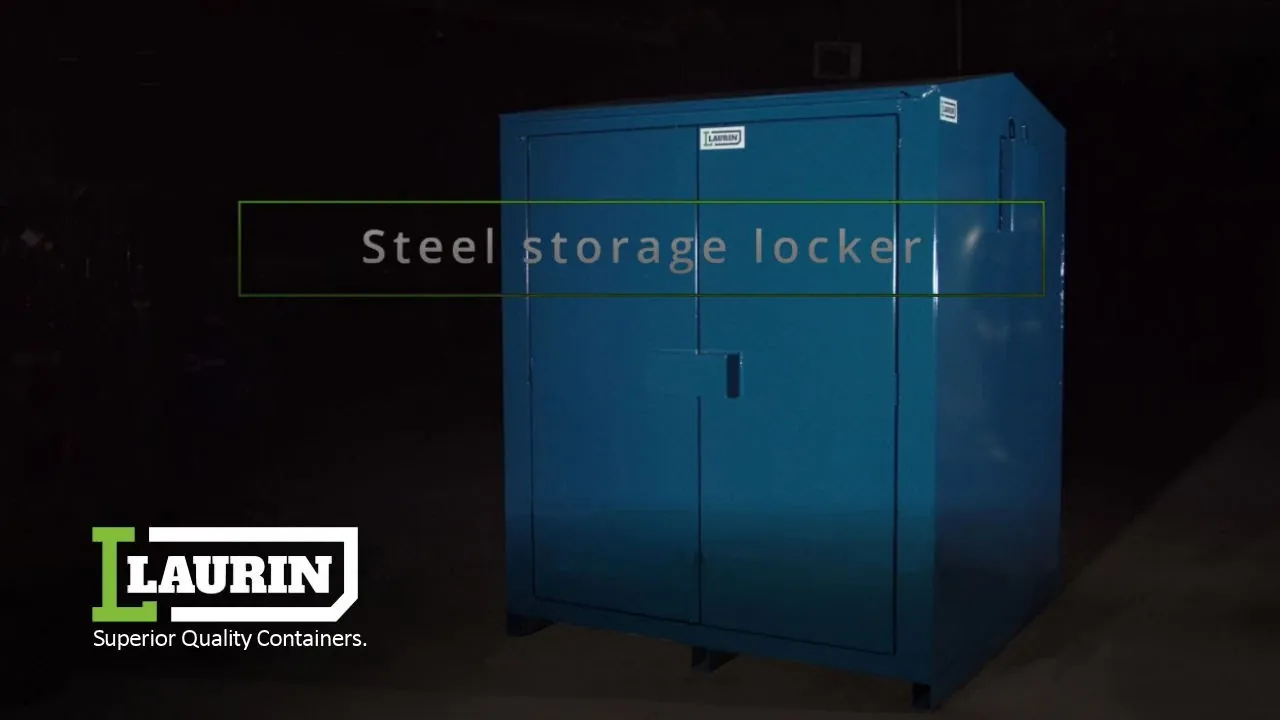

See it on video
The video is hosted on YouTube. It loads only when you press play. Watch it on YouTube
Built by Laurin since 1965

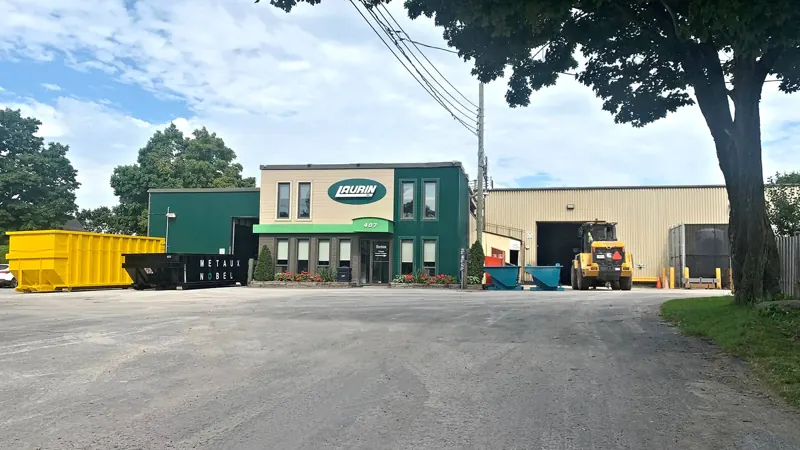

Heavydutystoragecabinet.com is part of Laurin Inc., a maker of steel containers and storage products with more than five decades in the trade. Every cabinet is built by the Laurin team at its plant in Laval, near Montreal, and made for the American market.
About LaurinFrequently asked questions
If your question is not here, call 450.689.1962 or use the quote form below.
Where are your products made?
Every storage cabinet is built by the Laurin team at its plant in Laval, near Montreal, Canada.
Can I order your products in custom colors?
Yes. We offer eleven standard colors and can match your brand or team colors. A nominal fee is charged for optional or custom colors. Request a quote and tell us the color you need.
Do you provide a warranty on your products?
We fully support our products. They are built for strength and superior craftsmanship, and our customer satisfaction rate is close to perfect. See the warranty page for details.
How fast do your products ship?
Many items fall under our quick-ship program and leave within 1 to 5 days. Some products are made to order and need weeks for production, assembly and shipping. Ask for the lead time when you request your quote. If you have a firm deadline, tell us and we will work to meet it. See the shipping policy.
How do you ship your products?
We provide flat-rate shipping to the contiguous United States (the lower 48 states). For deliveries outside this region, contact us for a custom quote. Carriers are chosen for your location from our trusted network so your order arrives safely. See the shipping policy for details.
What do I do if I have a warranty concern?
If you have an issue with the quality or performance of your product, refer to your warranty and follow its instructions, or contact us for prompt help.
Request a quote
Tell us where the cabinet is going and how many you need. We answer with a price and the delivery details. We ship nationwide.
